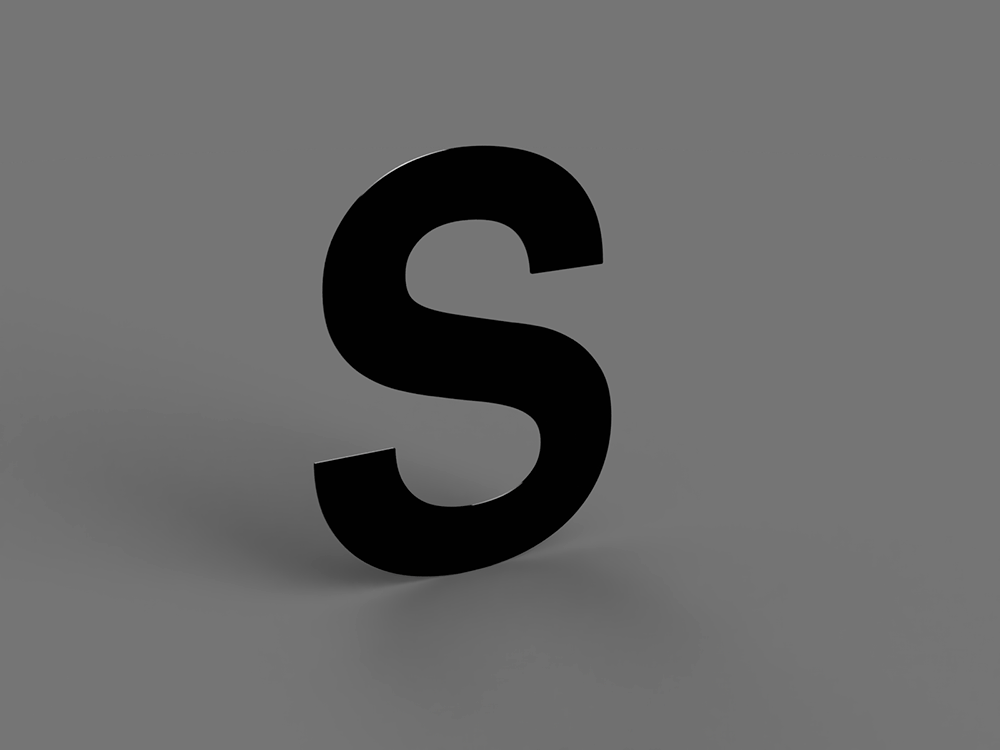

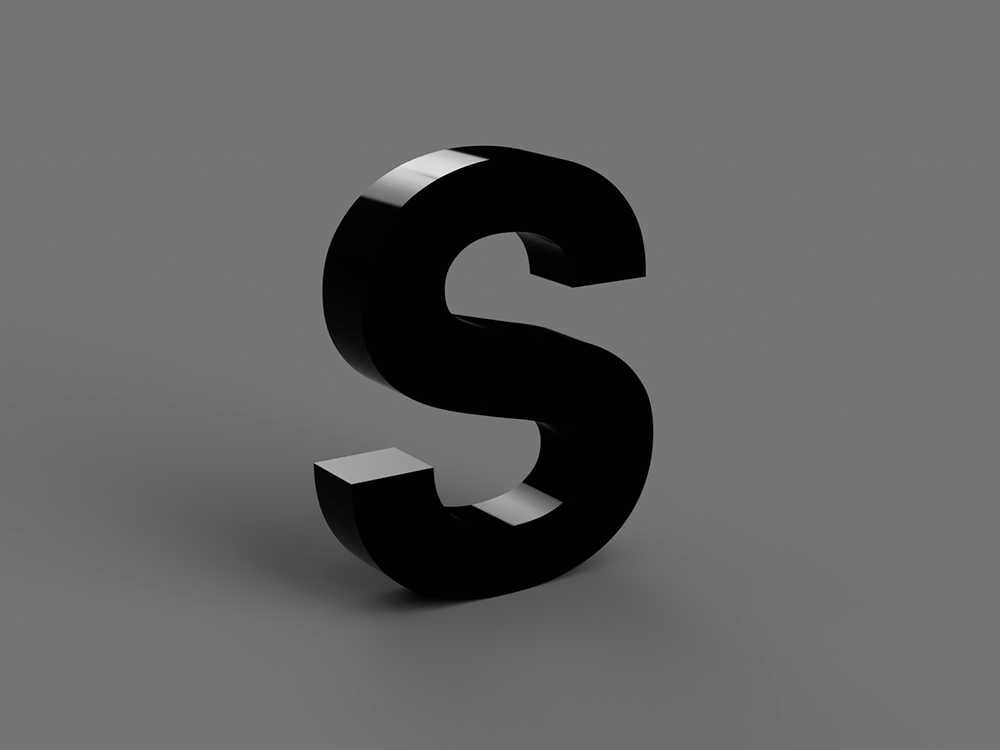

Profile 0 (not illuminated)

Material: aluminium, stainless steel, MDF, ACP, PVC
Size (h): 100-1500mm
Depth: 2-19 mm
Stroke: min. 15 mm
Material finish: wet paint, powder coating
Mounting way: directly to the wall, studs, aluminium frame

Profile 1 (not illuminated)

Material: aluminium, stainless steel
Size (h): 200-2000 mm
Depth: 30-175 mm
Stroke: min. 35 mm
Finishing: powder coating
Mounting way: studs, aluminium frame

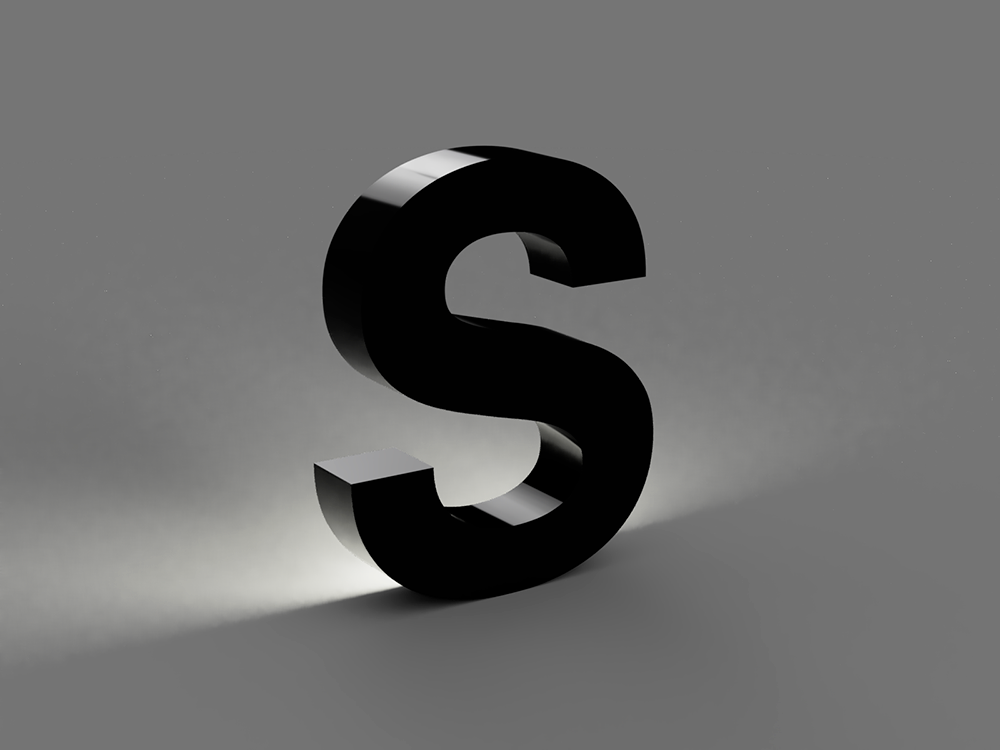

Profile 3 (illuminated to the back)

Housing material: aluminium, stainless steel
Back material: 3-5 mm acrylic
Size (h): 200-2000 mm
Depth: 30-175 mm
Stroke: min. 35 mm
Finishing: wet paint, powder coating
Mounting way: Studs, aluminium frame

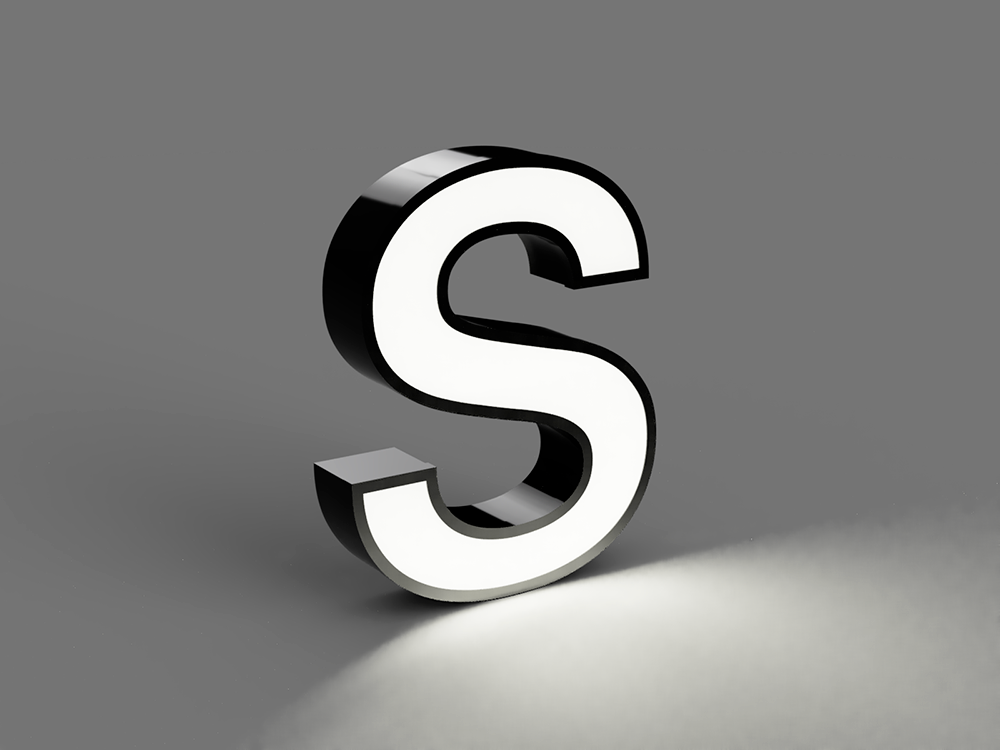

Profile 4 (illuminated to the front)

Housing material: aluminium
Front material: 3-5mm acrylic
Size (h): 1000-2000 mm
Depth: 100-175 mm
Stroke: min. 100 mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame

P4 XL

Profile 4 XL (illuminated to the front)

Housing material: aluminium profiles
Front material: soft PVC
Back material: 2 mm aluminium, 2-3 mm ACP
Size (h): 2000-4500 mm
Depth: 150-250 mm
Stroke: min. 400 mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame

P5S

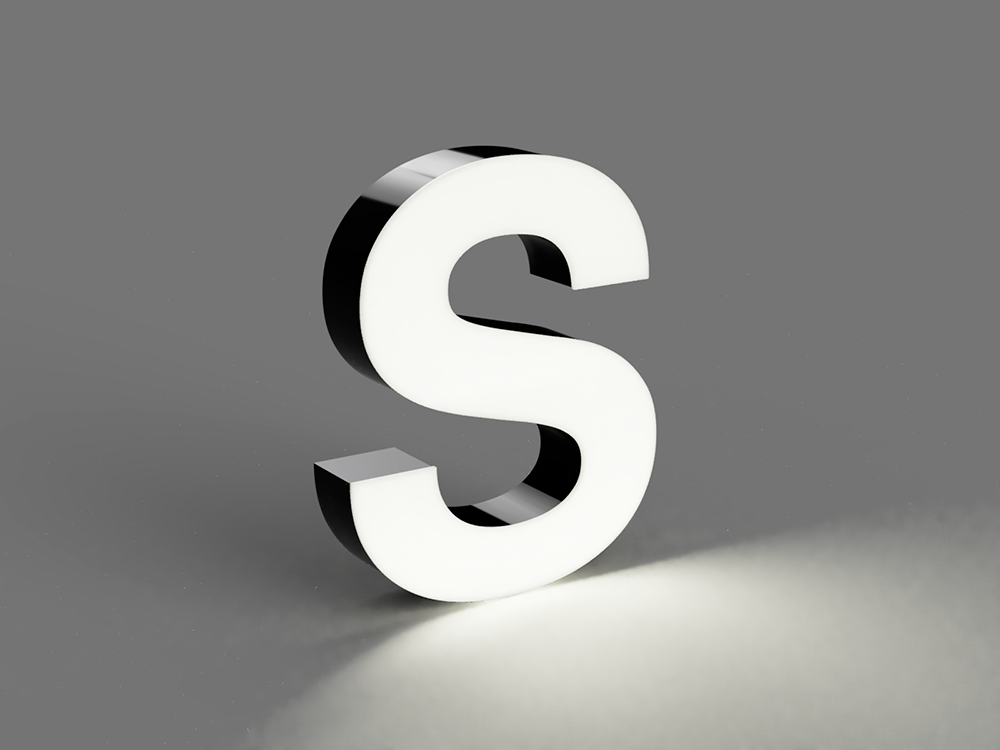

Profile 5S (illuminated to the front)

Housing material: aluminium, stainless steel
Front material: 3-5mm acrylic
Size (h): 600-2000 mm
Depth: 60-175 mm
Stroke: min. 60 mm
Finishing: powder coating
Mounting way: directly to the wall, studs, aluminium frame

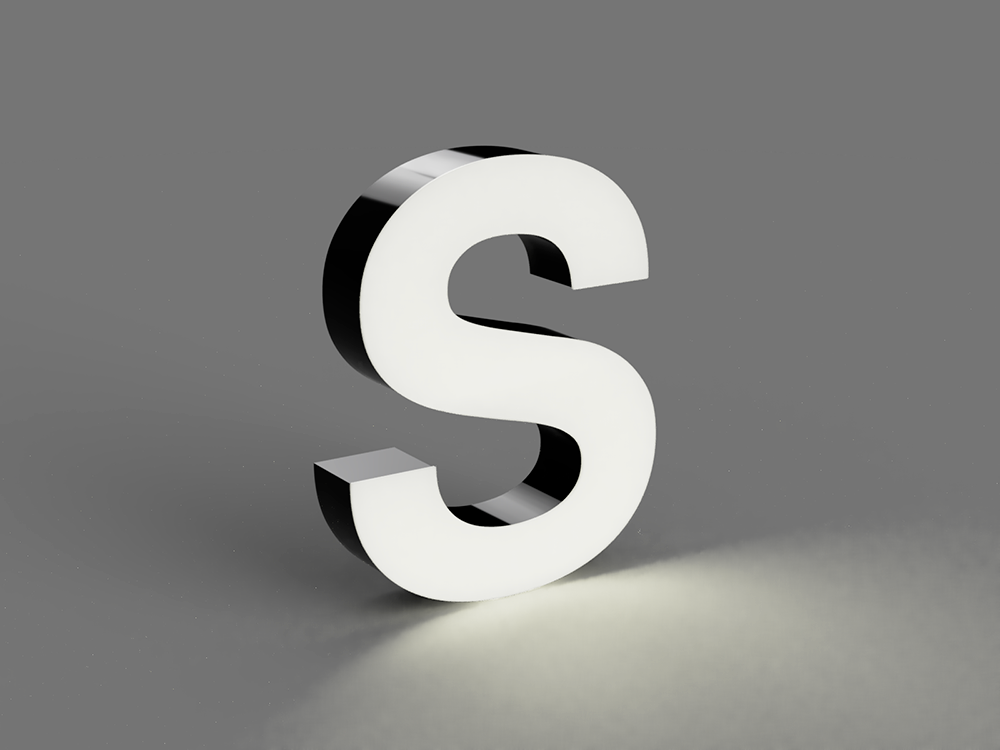

Profile 6 (illuminated to the front)

Housing material: aluminium, stainless steel
Front material: 8mm acrylic
Size (h): 200-1200 mm
Depth: 60-175 mm
Stroke: min. 35 mm
Finishing: powder coating
Mounting way: directly to the wall, studs, aluminium frame

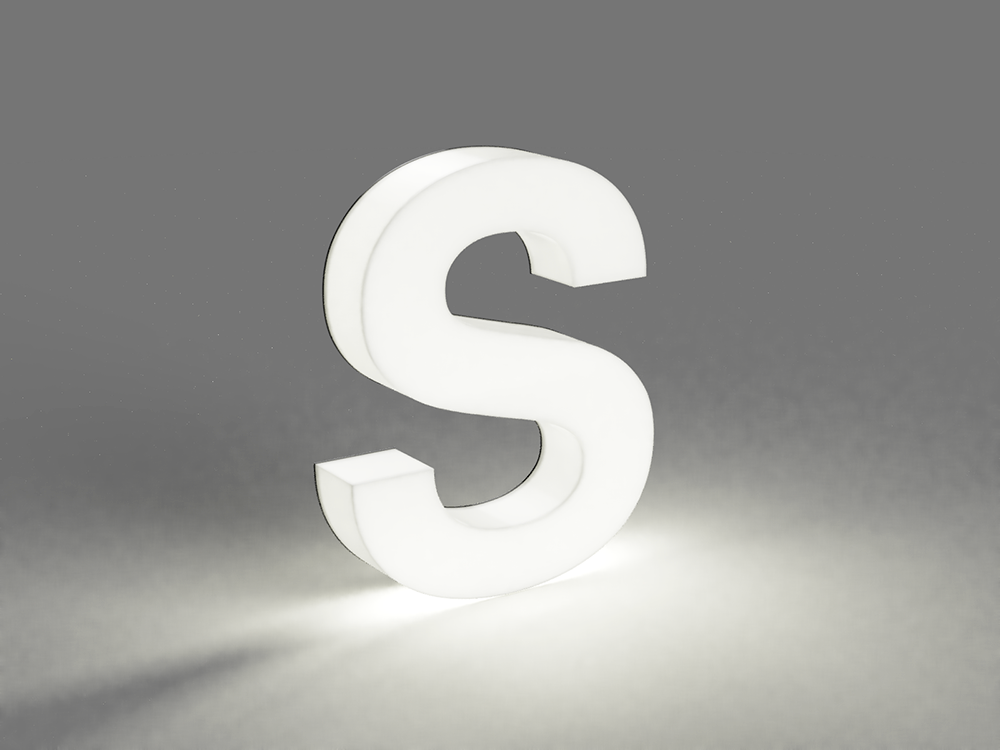

Profile 8 (illuminated to the front and sides)

Housing material: acrylic
Back material: aluminium, PVC
Size (h): 300-2000 mm
Depth: 40-100 mm
Stroke: min. 40 mm
Mounting way: directly to the wall, studs, aluminium frame

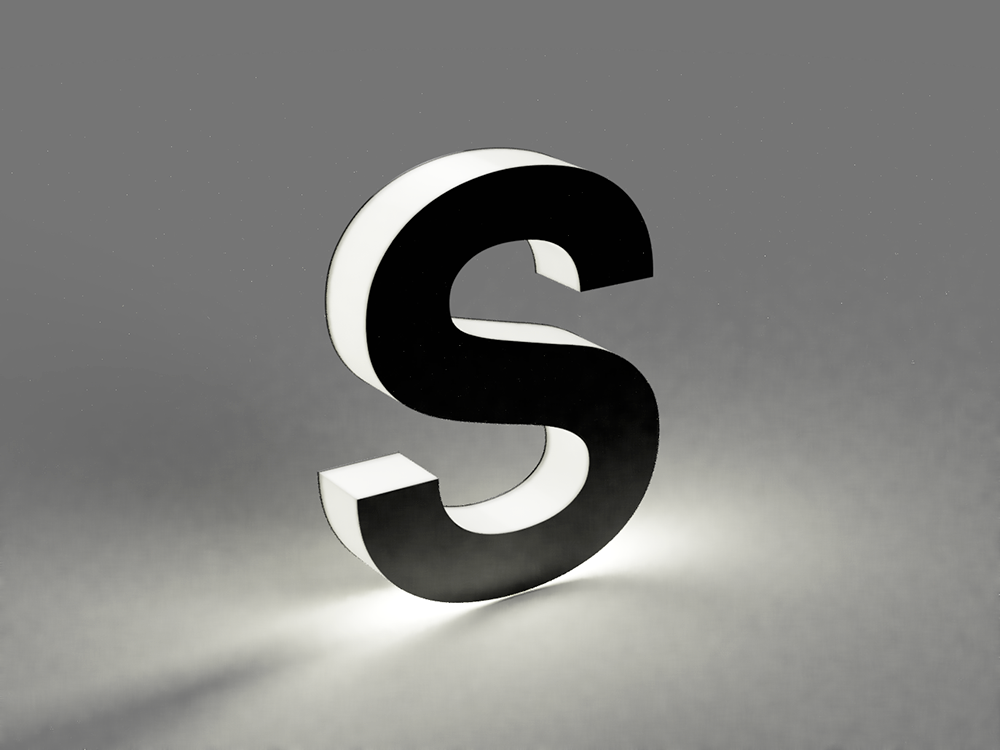

Profile 9 (illuminated to the sides)

Housing material: acrylic
Front material: blockout vinyl, aluminium, stainless steel
Back material: aluminium, PVC
Size (h): 300-2000 mm
Depth: 40-100 mm
Stroke: min. 40 mm
Finishing: powder coating
Mounting way: directly to the wall, studs, aluminium frame

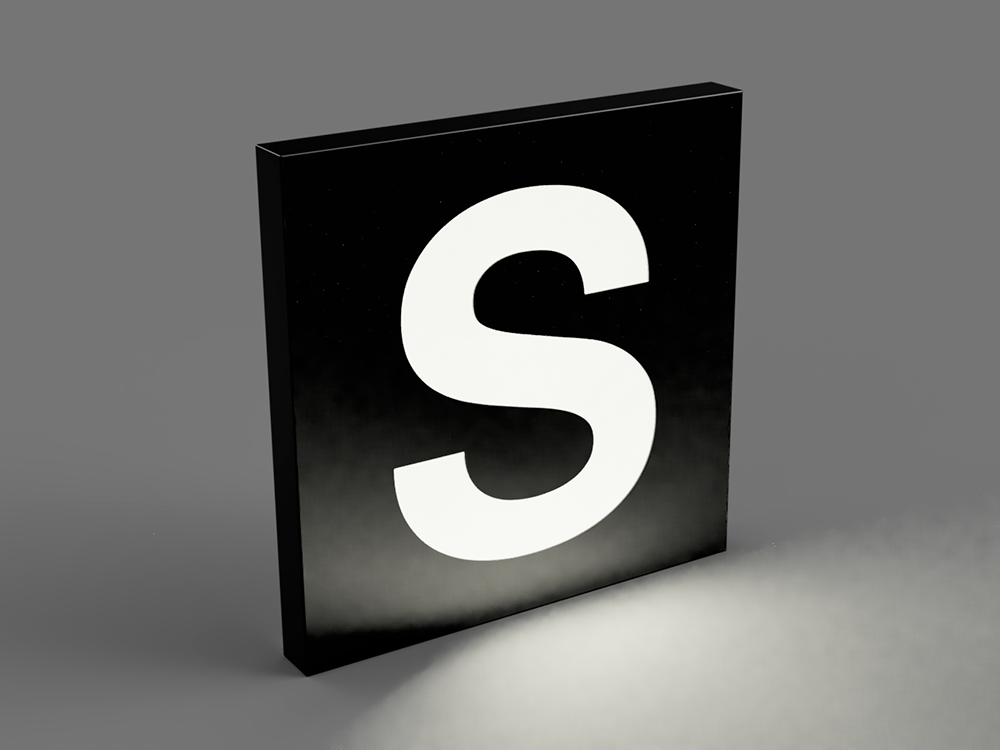

Profile L1

Housing material: aluminum, ACP
Acrylic: 3-4mm
Depth: 50-120mm
Size: from 200x200mm to 10000x1800mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame
Also available double sided

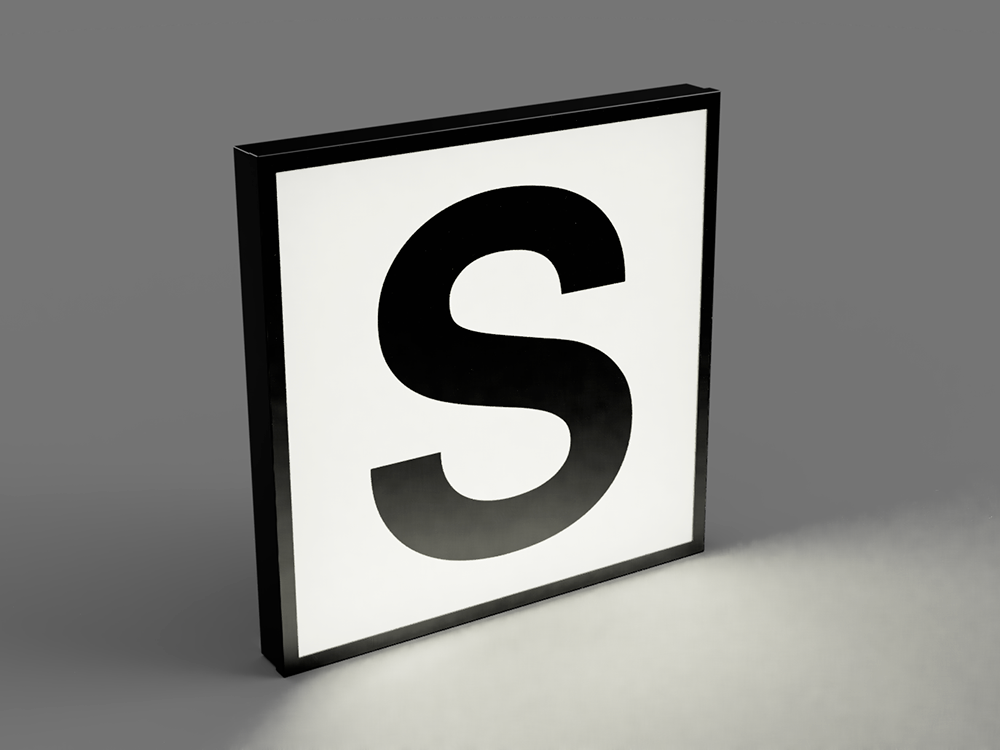

Profile L4

Housing material: aluminium
Front material: 3-5mm acrylic
Back material: aluminium, ACP
Depth: 100-130mm
Size: from 200x200mm to 2000x3000mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame

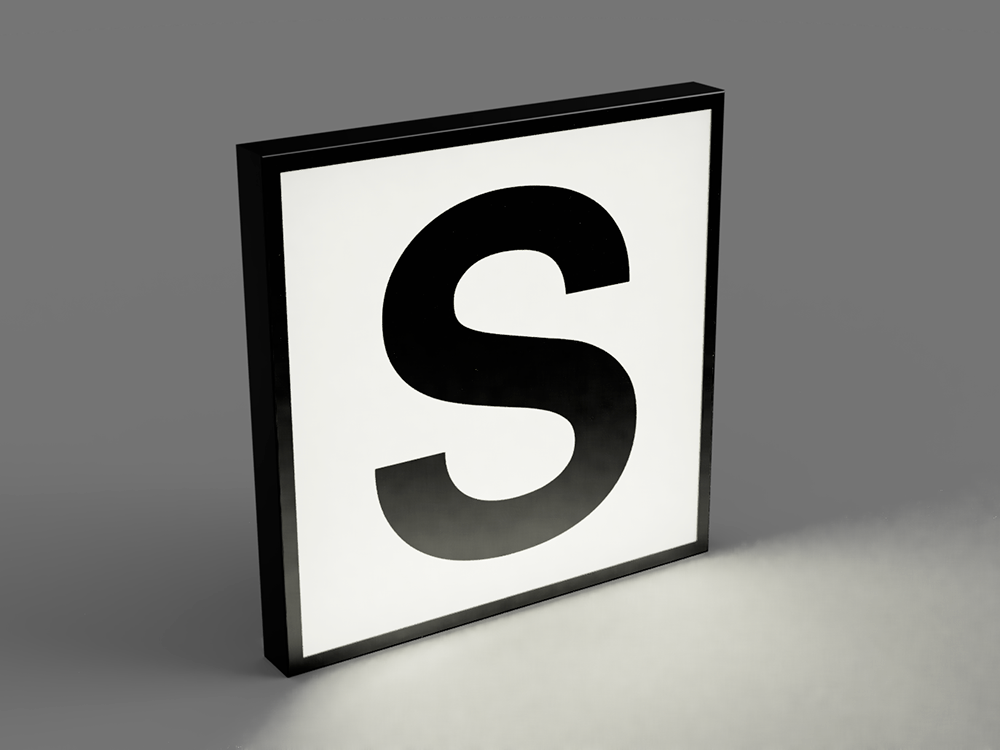

L4XL

Profile L4 XL

Housing material: aluminium tubing
Front material: soft PVC
Back material: aluminium, ACP
Side material: aluminium
Depth: 130-200mm
Size: from 1500x1500mm to 10000x4750mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame

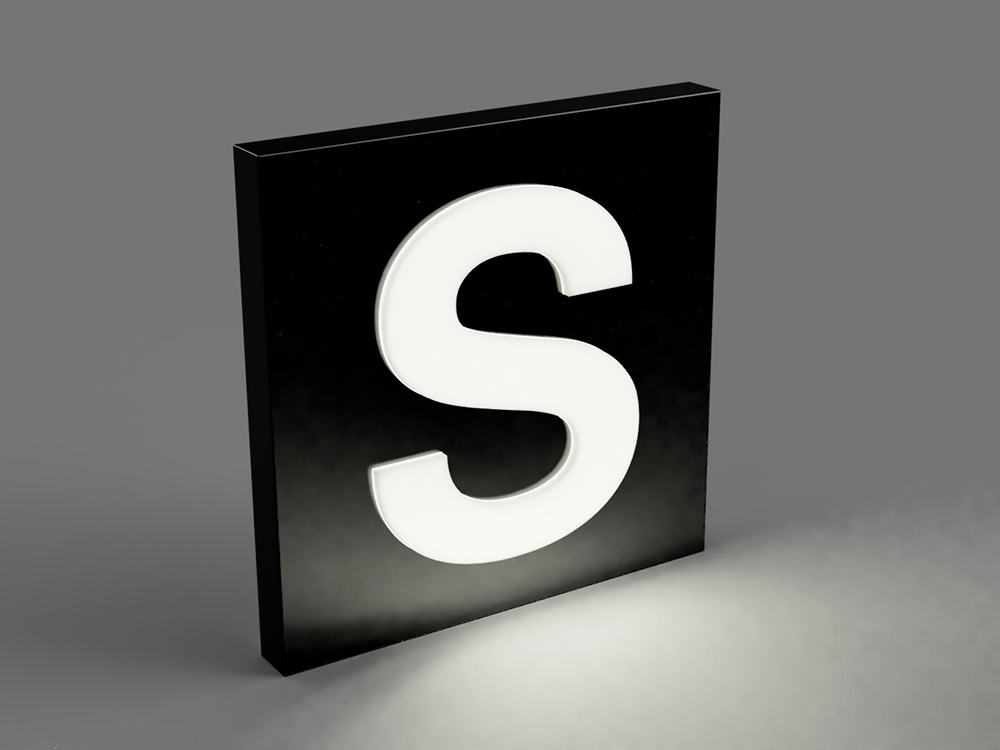

L10

Profile L10

Housing material: aluminum, ACP
Acrylic: 10-20mm
Depth: 50-120mm
Size: from 200x200mm to 10000x1800mm
Finishing: powder coating
Mounting way: directly to the wall, aluminium frame
Also available double sided

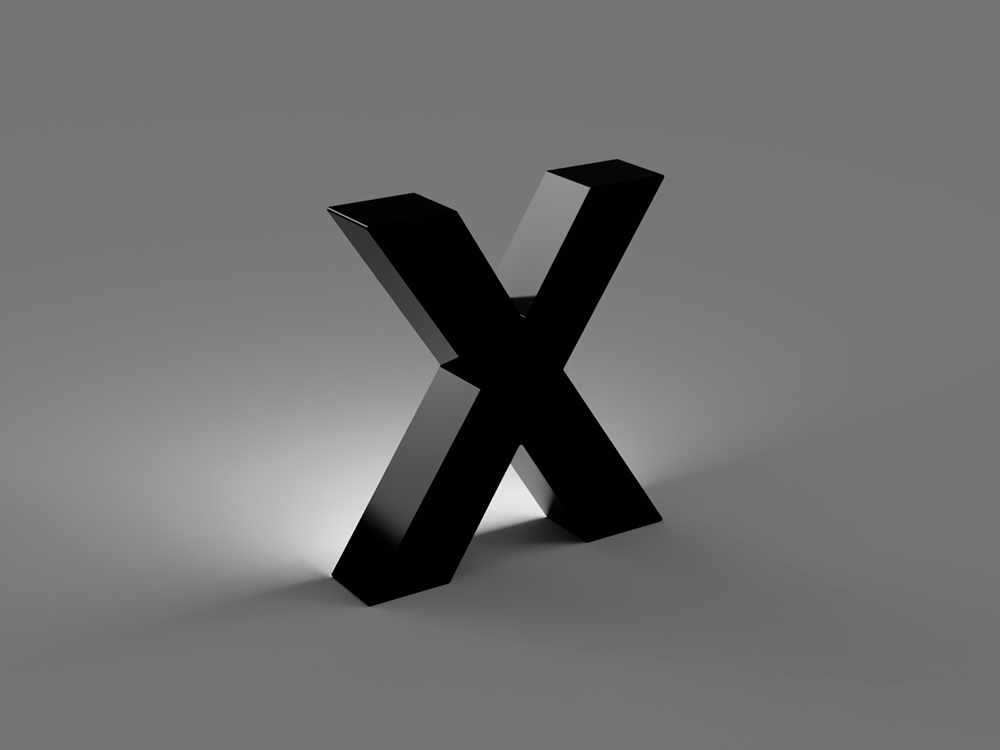

LEDIPLEX 3

Housing material: acrylic
Depth: 15-30 mm
Size: 100-500 mm
Stroke: min. 15 mm
Mounting way: studs, aluminium frame

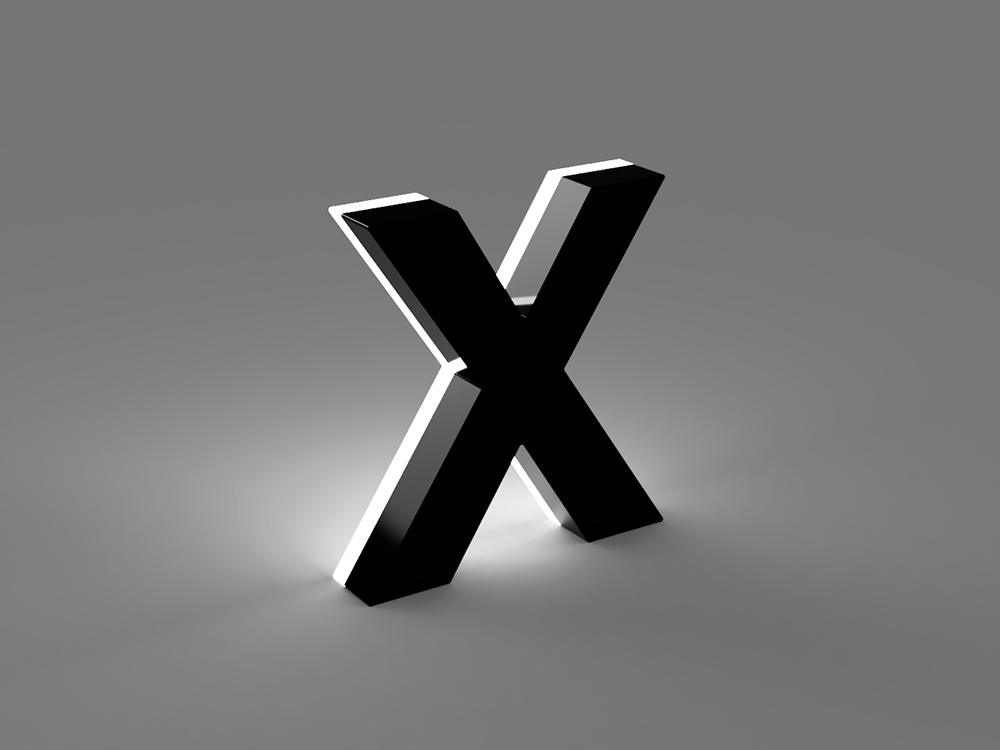

L3+

LEDIPLEX 3 PLUS

Housing material: acrylic
Front material: blockout vinyl, aluminium, stainless steel
Depth: 30 mm
Size: 100-500 mm
Stroke: min. 15 mm
Mounting way: directly to the wall, studs, aluminium frame

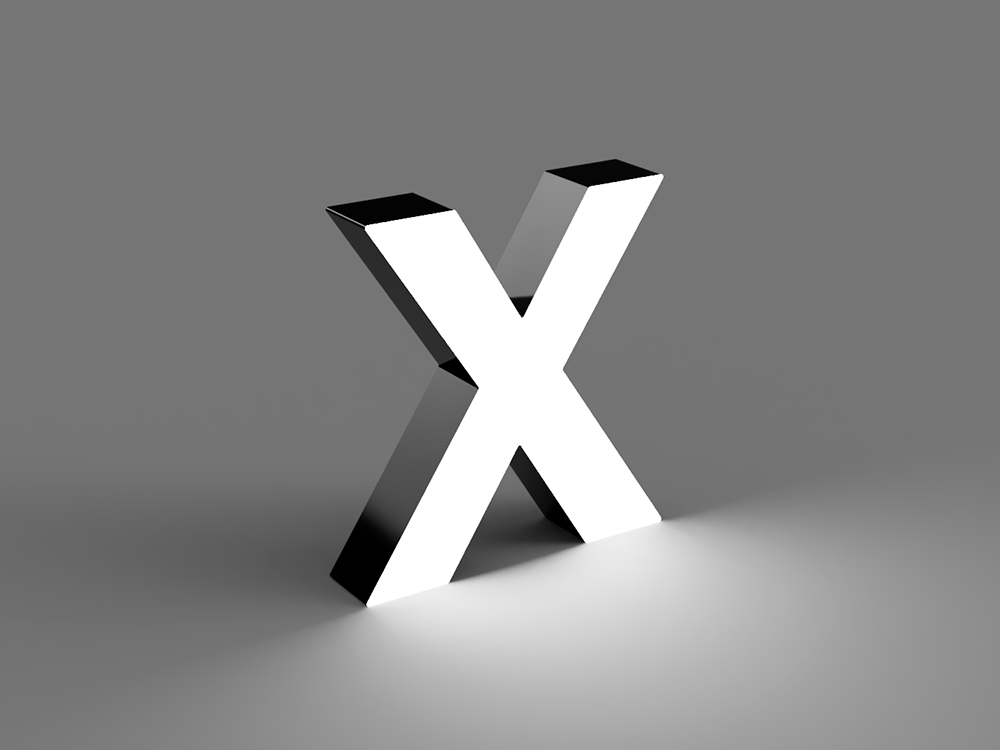

LEDIPLEX 6

Housing material: acrylic
Depth: 30 mm
Size: 100-500 mm
Stroke: min. 15 mm
Mounting way: directly to the wall, studs, aluminium frame

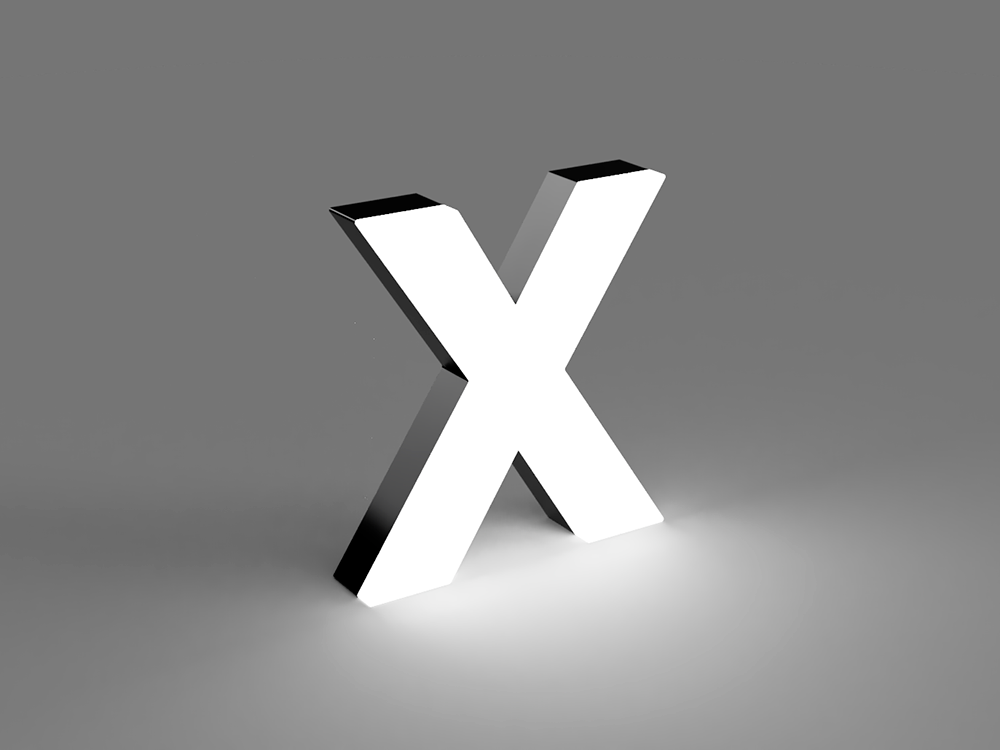

L6+

LEDIPLEX 6 PLUS
